Description

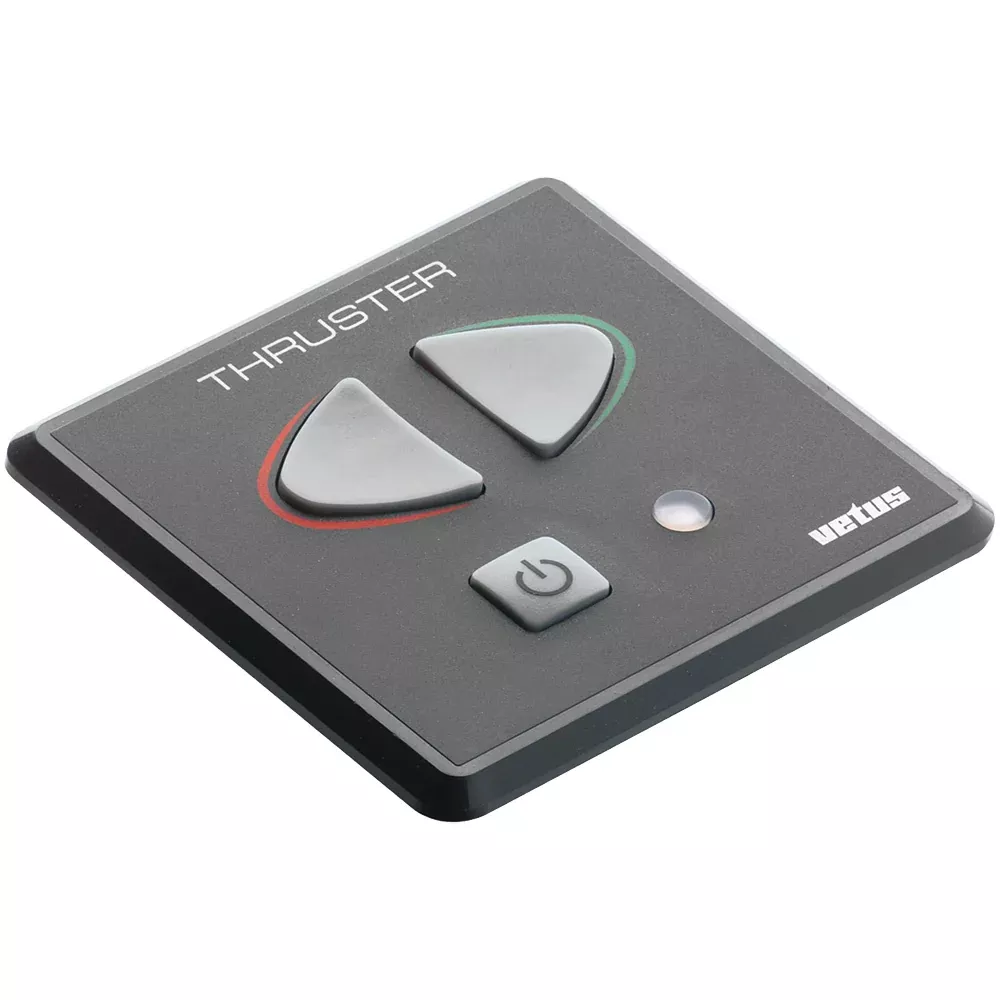

Bow Thruster Panel w/Buttons & Time Lapse
Single touch panel for operating a Vetus bow or stern thruster. Supplied with quick connectors for BP29 series wiring harnesses. Capable of daisy chaining additional controls for multiple stations.
Features:
- Protected against accidental or unauthorized operation
- Panel power on indicator
- Control circuit overload protection
- Built-in time lapse device when reversing the direction of rotation
- Automatic switch off after 30 minutes inactivity. This feature is user selectable during installation
- In the event of continuous running for more than 2 minutes there is a warning LED and buzzer and the thruster will switch off automatically. The panel will reset itself after 5 seconds.
- Watertight to IP 66
- Dimensions: 85mm x 85mm
This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
