Description
1-1/2″ x 50′ VAC XHD Bilge & Live Well Hose – Hard PVC Helix – Black
Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.
Features:
- 149 series of hoses is extra flexible
Application:
- Bilge and live well hose
Specifications:
- Tube & Cover: Hard PVC helix
- Color: Black
- Reinforcement: PVC Helix
- Temperature Range: 10°F-120°F (-12°C-48°C)
- Boxed: 50ft. / (15.2m)
- Inner Diameter: (inch) 1-1/2″ / (mm) 38.1
- Outer Diameter: (inch) 1.792″ / (mm) 45.5
- Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
- Weight: (Lb./ 50 ft.) 22 / (Kg/m) 9.98
- Bend Radius: (inch) 4″ / (mm) 101.6
*Burst Pressure is 4 x Working Pressure
Specifications:
- ID Diameter (inches): 1-1/2″
- Box Dimensions: 8″H x 23″W x 23″L WT: 23.2 lbs
- UPC: 704917010472
Quick Guide (pdf)
![Trident Marine 3/4" x 50 Heavy Duty PVC BilgeLivewell Hose (FDA) - Clear w/Black Helix [147-0346]](https://www.bestmarinewiring.com/wp-content/uploads/2026/08/trident-marine-3-4-x-50-heavy-duty-pvc-bilgelivewell-hose-fda-clear-w-black-heli.webp)
![Trident Marine 3" x 50 Blue Polyduct Blower Hose [481-3000]](https://www.bestmarinewiring.com/wp-content/uploads/2026/08/trident-marine-3-x-50-blue-polyduct-blower-hose-481-3000.webp)
![Trident Marine 5/8" Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red - Sold by the Foot [166-0586-FT]](https://www.bestmarinewiring.com/wp-content/uploads/2026/08/trident-marine-5-8-reinforced-pvc-fda-hot-water-feed-line-hose-drinking-water-sa.webp)
![Trident Marine 1/2" Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red - Sold by the Foot [166-0126-FT]](https://www.bestmarinewiring.com/wp-content/uploads/2026/08/trident-marine-1-2-reinforced-pvc-fda-hot-water-feed-line-hose-drinking-water-sa.webp)
![Trident Marine 1-1/4" x 50 Coil Flex Marine Wet ExhaustWater Hose - Black [100-1146]](https://www.bestmarinewiring.com/wp-content/uploads/2026/08/trident-marine-1-1-4-x-50-coil-flex-marine-wet-exhaustwater-hose-black-100-1146.webp)

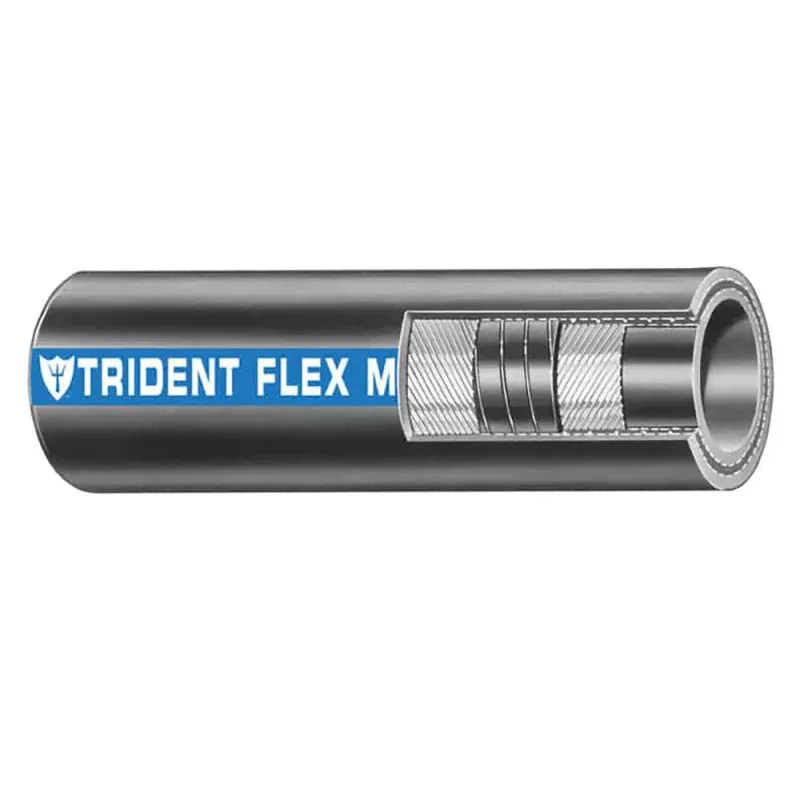

![Trident Marine 1-1/2" x 50 Coil Flex Marine Wet ExhaustWater Hose - Black [250-1126]](https://www.bestmarinewiring.com/wp-content/uploads/2026/08/trident-marine-1-1-2-x-50-coil-flex-marine-wet-exhaustwater-hose-black-250-1126.webp)
