Description

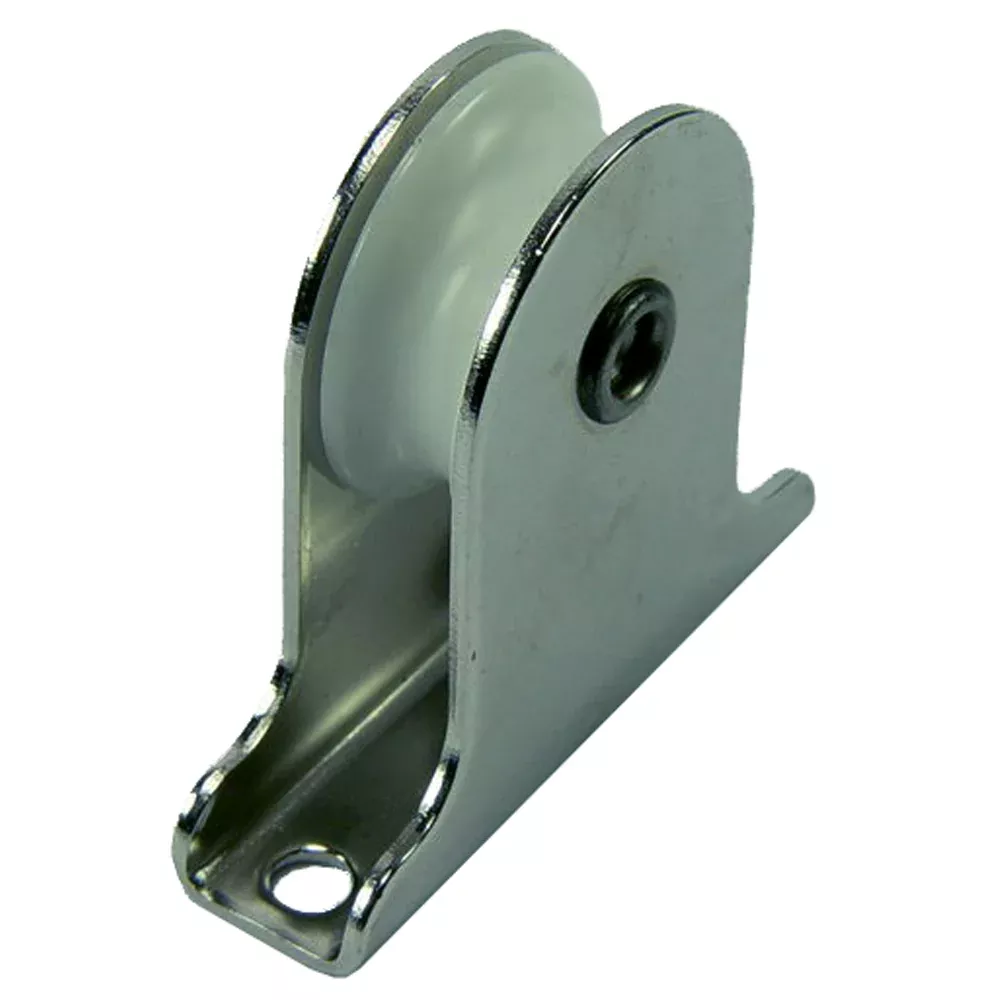

Single Lead Block – 19mm(3/4″) Sheave Diameter
Lead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers.
Applications:
Typically used in dinghy spars for control lines
Materials:
- U.V. stabilized Acetal sheave
- Grade 316 stainless steel load housing
Sheave Ø:19mm(3/4″)
Max. Rope Ø:8mm(5/16″)
Fastener Ø:5.0mm(3/16″)
M.W.L.:250kg(550lbs)
B. L.:550kg(1,100lbs)
Weight:20g(0.7oz)
