Description

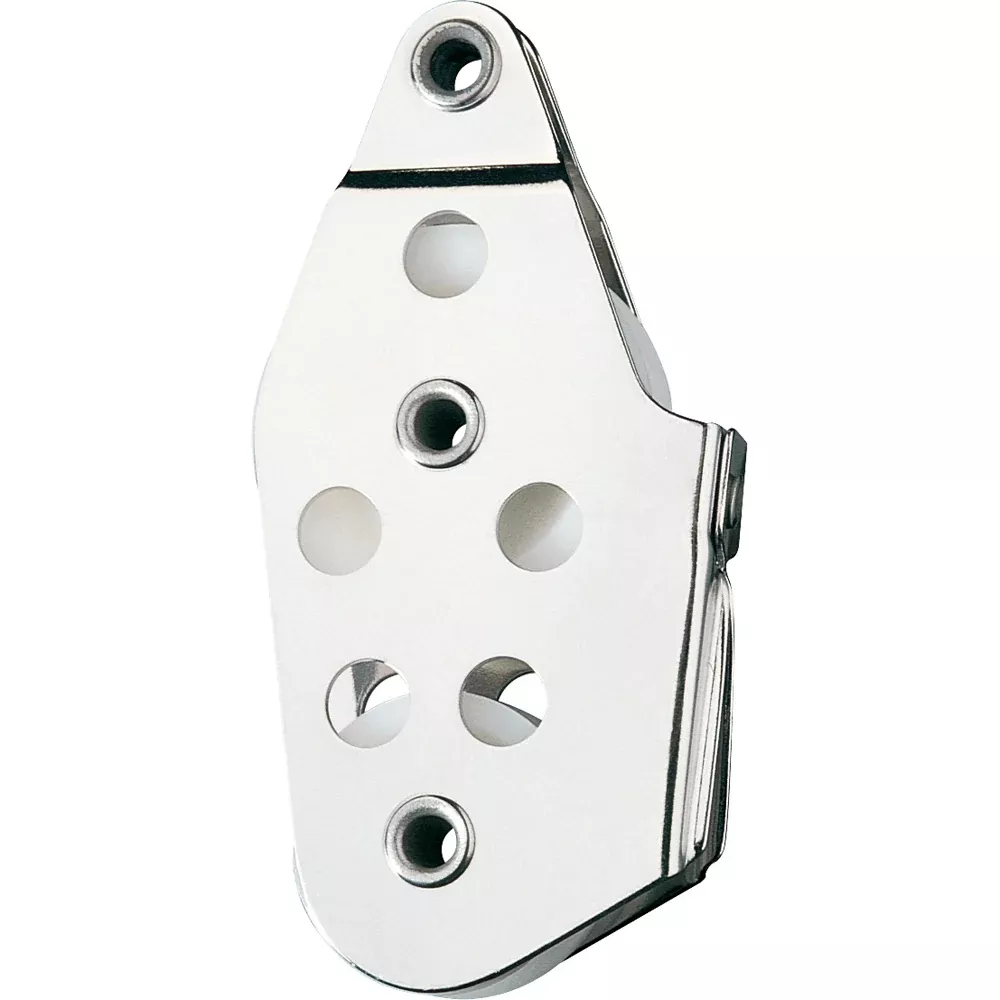

Series 30 Fiddle Block – Narrow with Tube Rivet Head & V-Jam Cleat
Features:
- Lightweight durable construction
- Economical
- Maintenance free
- Allows fast, sure cleating of control lines
- Hollow rivets accept fixing screws, shackles or can be used as a becket for extra purchase
- Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance
Applications:
- Vang, cunningham and trapeze retriever systems on dinghies
- Leech line tackles, bunk adjusters etc on larger yachts
Materials:
- U.V. Stabilized Acetal sheaves
- Grade 316 stainless steel cheeks
Specifications:
Sheave Ø:29mm(1-1/8″)
Max. Rope Ø:8mm(5/16″)
M.W.L.:300kg(660lbs)
B. L.:600kg(1,320lbs)
Weight:60g(2.1oz)
