Description

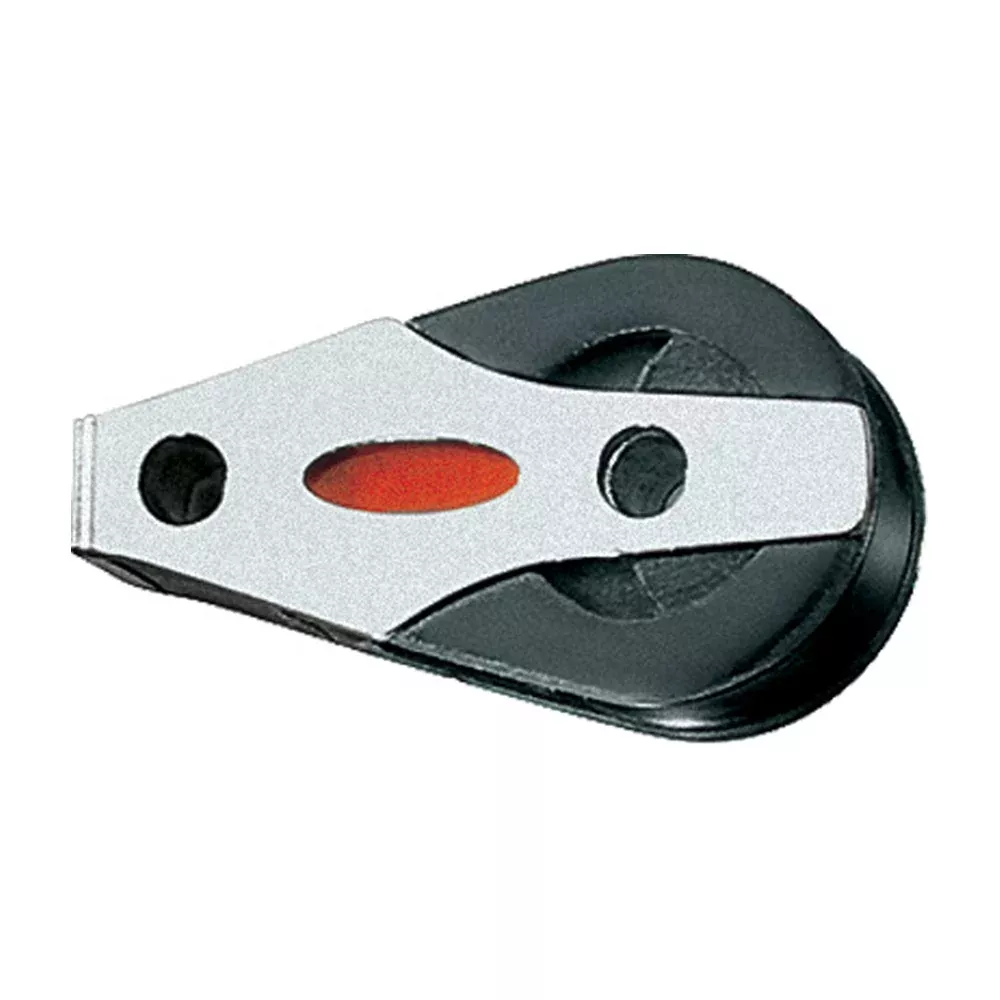

Series 20 Ball Bearing Block – Single – Cheek
Features:
- Low friction
- High static and dynamic load capacity
- Lightweight
- Double through-bolt mounting for maximum load capacity
- Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
Applications:
- Dinghy control lines
- Dinghy Vangs
- Cunninghams
- Traveller controls
Materials:
- U.V. Stabilized Acetal sheaves
- Stainless steel ball bearings
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fiber reinforced Nylon cheeks
Specifications:
Sheave Ø:20mm(3/4″)
Max. Rope Ø:6mm(1/4″)
M.W.L.:250kg(550lbs)
B. L.:550kg(1,210lbs)
Weight:14g(0.5oz)
