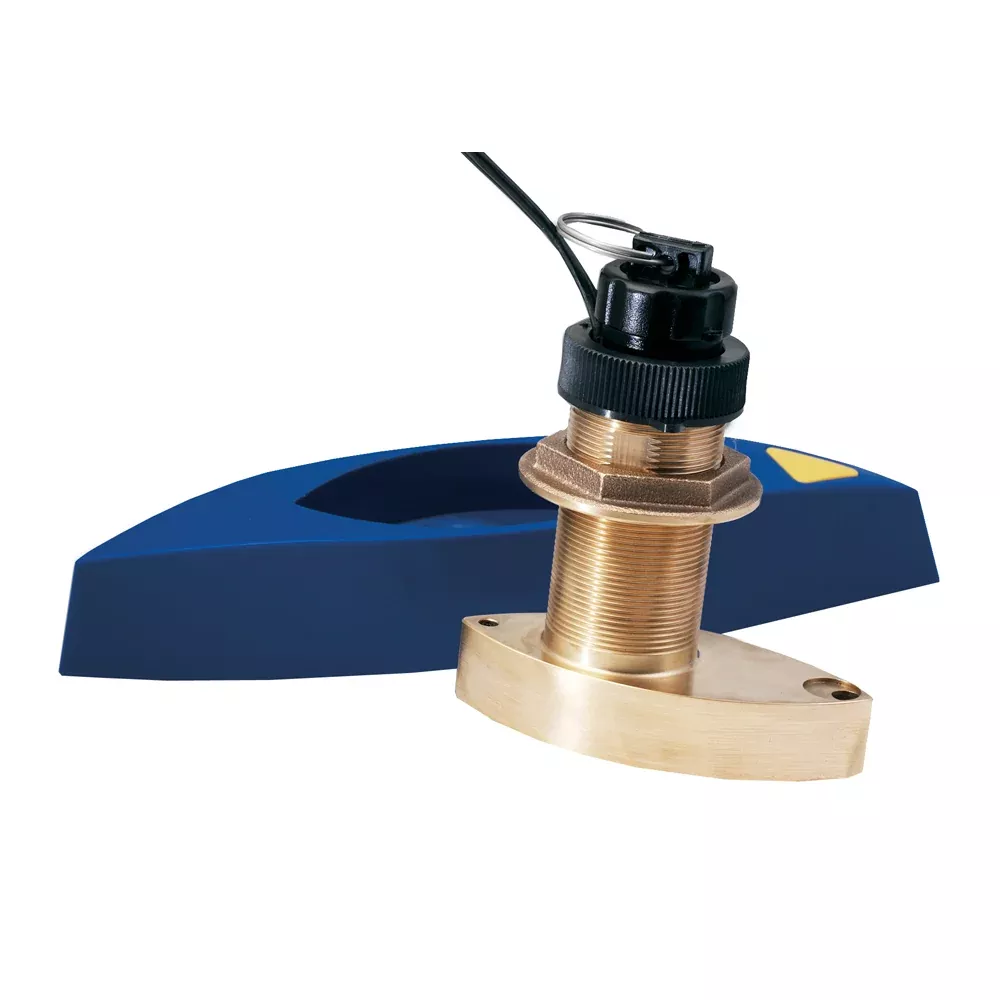

![Raymarine B744V Bronze Thru Hull Tri-Ducer w/Fairing Block [A66091]](https://www.bestmarinewiring.com/wp-content/uploads/2026/08/raymarine-b744v-bronze-thru-hull-tri-ducer-w-fairing-block-a66091.webp)
Description
B744V 600 Watt Bronze thru hull transducer with depth, speed, and temperature.
Compatible with the following sounder modules:
- DSM30
- DSM300
Compatible hull material: Wood and fiberglass
Max power: 600 W
Frequency: 200/50 kHz
Cable: 30ft (10m) cable with connector
Hole diameter for installation: 2″
Other: Self-sealing removable paddle wheel insert.
Includes high speed fairing block.
Specifications:
- Temperature: Yes
- Speed Included: Yes
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: No
- Cable Length (Feet): 30′
- Box Dimensions: 4″H x 12″W x 16″L WT: 7.65 lbs
- UPC: 801769004366
Owner’s Manual (pdf)
Brochure (pdf)
