Pacer Tinned Lug 4/0 AWG – 1/2″ Stud Size – 10 Pack [TAE4/0-12R-10] In Demand

Description

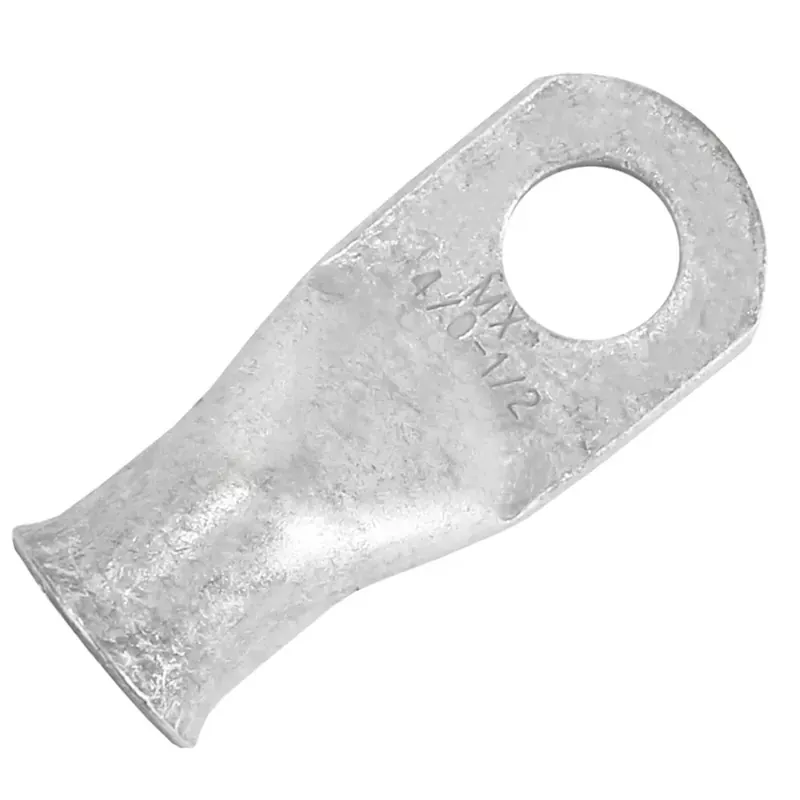

Tinned Lug 4/0 AWG – 1/2″ Stud Size – 10 Pack

Lugs are connection points that are created by crimping the connector onto a wire or cable. This connection, commonly referred to as a cold weld, creates a solid, long-lasting connection. Pacer lugs are made from 100% pure copper for high conductivity. This copper is fully annealed to prevent cracking while being crimped and while in service. These terminals are also tin-plated to prevent corrosion and many of these lugs are general-purpose seamless electrical terminals. They are commonly used with battery cables.

Features:

• Tin-plated copper with no exposed seams offering 100% long-term conductivity
• Tinned copper
• Highly durable
• Multitude of sizes
• Easily terminated
• Infield applications
• Long-lasting

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 Copper
• RoHS Compliant
• CSA Approved
• UL Approved

Specifications:

• Wire AWG: 4/0 AWG
• Stud Size: 1/2″
• Length (inch): 2.344″
• Width (inch): 0.984″
• Clearance (inch): 0.547″
• Package Size: Ten included

Specifications:

• Gauge: 4/0 AWG
• Heat Shrink: No
• Package Qty: 10
• Post Size: 1/2″
• Type: Lugs
• Box Dimensions: 1″H x 4″W x 7″L WT: 0.85 lbs
• UPC: 840248205719
