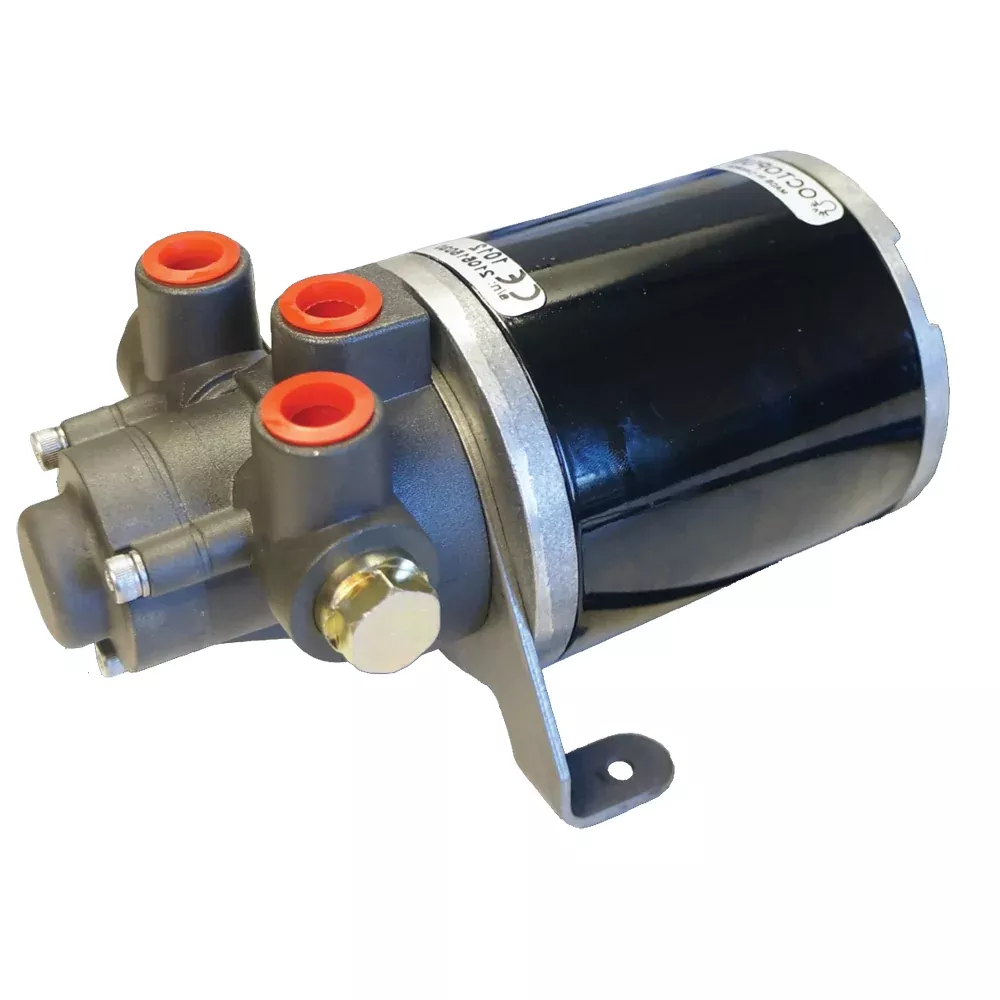

Octopus Hydraulic Gear Pump 12V 16-24CI Cylinder

Description

Hydraulic Gear Pump 12V 16-24CI Cylinder

From the design team that brought you the legendary Octopus hydraulic
drives, our new gear pump offers industry leading reliability and
performance in a smaller, lighter, quieter package.

Features:

• Industry leading efficiency – lower power consumption, particularly
  under demanding conditions requiring higher flow rates equates to a major
  advantage over competing units.
• Cost saving – the increased efficiency and performance means the pumps
  can be used with smaller autopilot course computers than equivalent drive
  units.
• The smaller footprint of the compact gear pump increases installation
  flexibility.
• Lower noise and vibration make the gear pump particularly suitable for
  sailboat installations.
• Suitable for balanced or unbalanced cylinders.
• All models available for both 12v and 24v systems.

Specifications:

• Flow Rate: 1600CC/min
• Voltage: 12 Volt
• Cylinder Range: 16-24ci CYLINDER
• Average Current Draw: 6.6A
• Operating Temperature: -15 to +75’C (5 – 167’F)
• Waterproofing: IP55
• Ignition Protection: ISO 8846 & SAEJ1171
• EMC Compliance: EN60945-9-2002

Specifications:

• Type: Pumps/Drives
• Box Dimensions: 4″H x 4″W x 10″L WT: 5.1 lbs
• UPC: 628309201616

Quick Guide (pdf)
