Newmar ES-1 Elite DC Panel [ES-1]

Newmar ES-1 Elite DC Panel [ES-1]

Original price was: $937.79.Current price is: $649.21.

79 in stock

SKU: DRSA-102463 Category:

Description

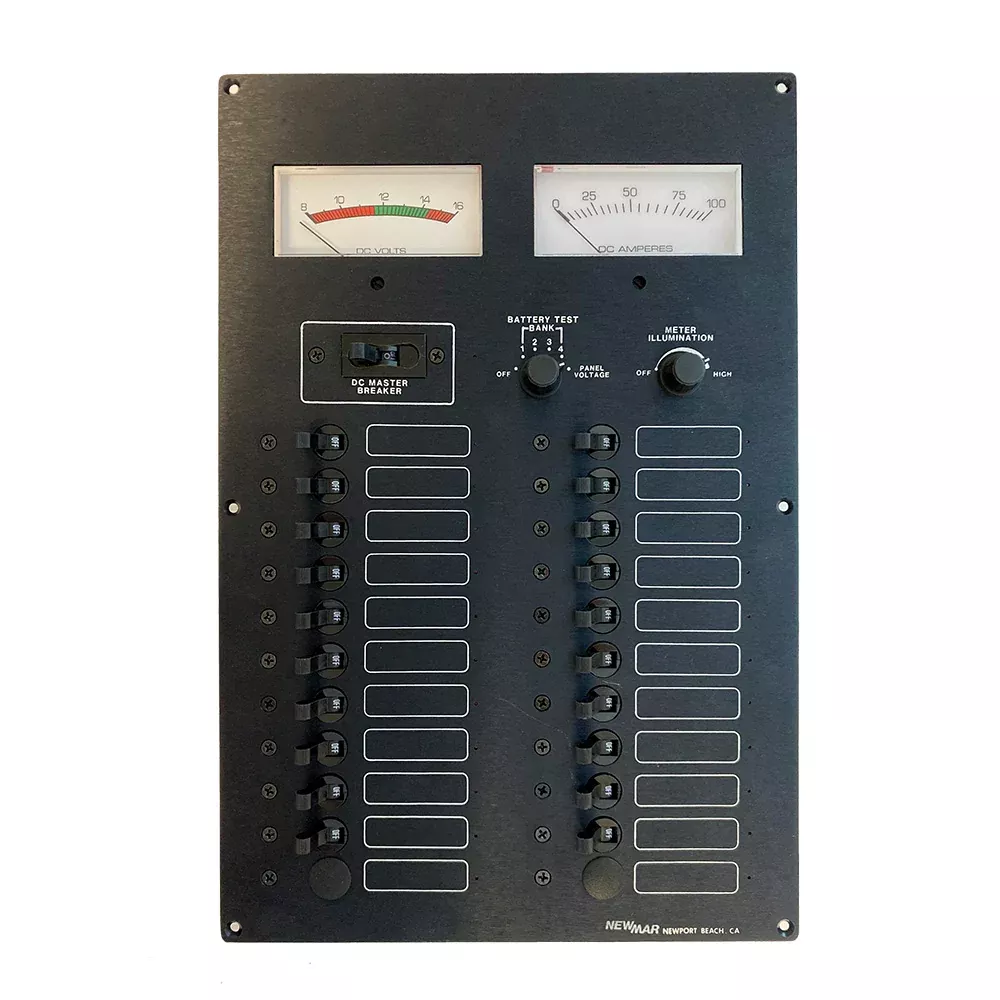

ES-1 Elite DC Panel

This DC master control panel offers a large DC circuit capacity and can be installed by itself or in conjunction with the ES-2 panel to make a complete AC-DC control and monitoring system.

Features:

  • Analog DC volt and ammeter, back-illuminated with dimmer
  • 12-volt standard, 24-volt optional
  • 4 battery bank test switch
  • DC master breaker (100 Amp standard; 50 or 75 amp optional)
  • 22 branch circuit capacity, 20 installed standard; 3-5A, 5-10A, 6-15A,
  • 6-20A or specify

Specifications:

  • Size (W x H x D): 10 x 15 x 4 inches
  • Weight: 8 lbs. (3.6 kg)
