Description
Fuel Flow Sensor – 2-100 LPH
Features:
- Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH)
- All M1AR fuel flow sensor accessories for the FFM100 are fitted with 1/4″ NPT female threads
- Nominal K Factor: 1000 pulses/L (3785.4 pulses/Gal)
- Cable Length: 1m (3.28′)
- Strainer Size: 200 Mesh (If not already installed after fuel filter)
- Port Size: 1/4″ NPT Female
- Maximum Viscosity: 1000 cPs
- Maximum Operating Pressure: 68.95 Bar (1000 PSI)
- Weight: 775g (1.71 lb)
- Construction: Aluminum Housing Material
- Rotors: PPS (Ryton)
- Shafts: 316/304 Stainless Steel
- Magnets: Samarium Cobalt
- O-Ring: FKM (Viton™)
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
![Garmin NMEA 2000 Backbone /Drop Cable - 6 (2M) - *Case of 10* [010-11076-00CASE]](https://www.bestmarinewiring.com/wp-content/uploads/2026/08/garmin-nmea-2000-backbone-drop-cable-6-2m-case-10-010-11076-00case.webp)
![Maretron IRHT-01 Indoor Humidity /Temperature Sensor [IRHT-01]](https://www.bestmarinewiring.com/wp-content/uploads/2026/08/maretron-irht-01-indoor-humidity-temperature-sensor-irht-01.webp)

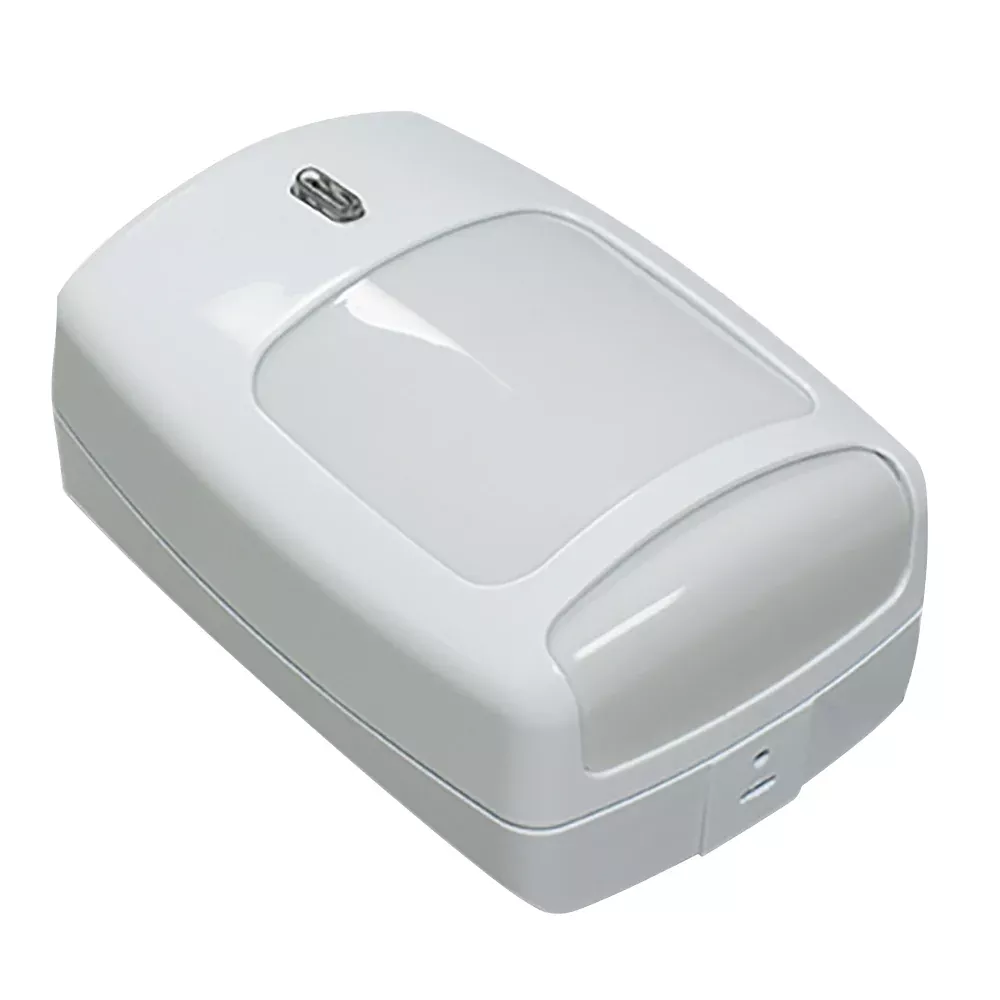

![Maretron Motion Detector f /SIM100 [IS216]](https://www.bestmarinewiring.com/wp-content/uploads/2026/08/maretron-motion-detector-f-sim100-is216.webp)
