Description

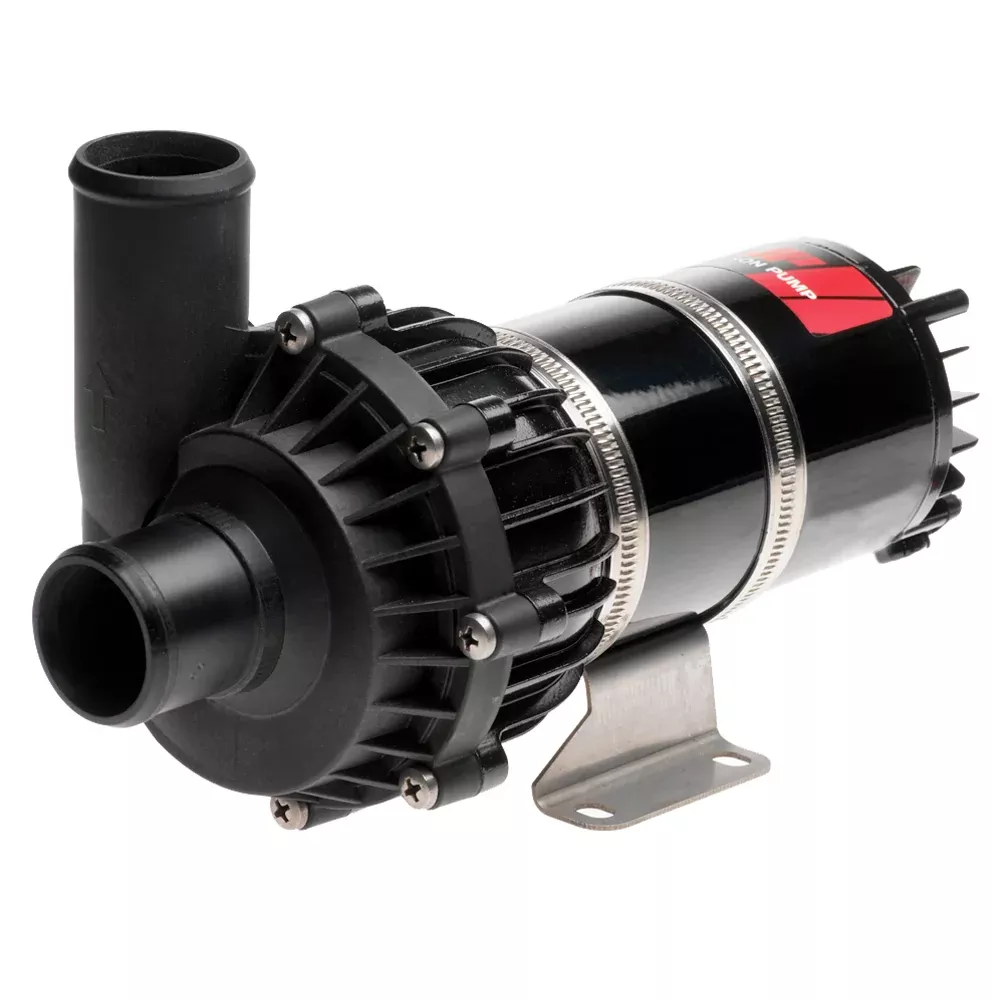

CM90 Circulation Pump – 23.7GPM – 12V – 1-½” Outlet
A line of compact magnetic driven centrifugal pumps which combine high flow
rates with very low electric current consumption. Suitable for fresh water,
ethylene glycol and salt water circulation.
System Pressure: -0.3 to +3.0 bar; stationary max. 4.0 bar
Liquid: water/glycol mixture; max. 60% glycol, fresh and salt water
Motor Service Life: More than 5,000 hours at nominal voltage 10,000
start/stops. Interchangeable motor.
Motor, Voltage: Nominal 13.6V DC for use between 10-16V Nominal 27.2V
DC for use between 20-32V
Input Power: Max. 125W
Dry Running: 30 minutes
Dimensions: 244mm (L) x 120mm (W) x 150mm (H)
Ports:Ø 20mm (3/4″) & Ø 38mm (1-1/2″)
Weight: 3.0kg (6.6lbs)
Body: PPA, glass-fiber reinforced
Mounting: Separate universal bracket for flat surfaces
Specifications:
- Gallons Per Minute: 23.7 GPM
- Volts: 12v
- Box Dimensions: 6″H x 7″W x 11″L WT: 6.76 lbs
- UPC: 7330717012915

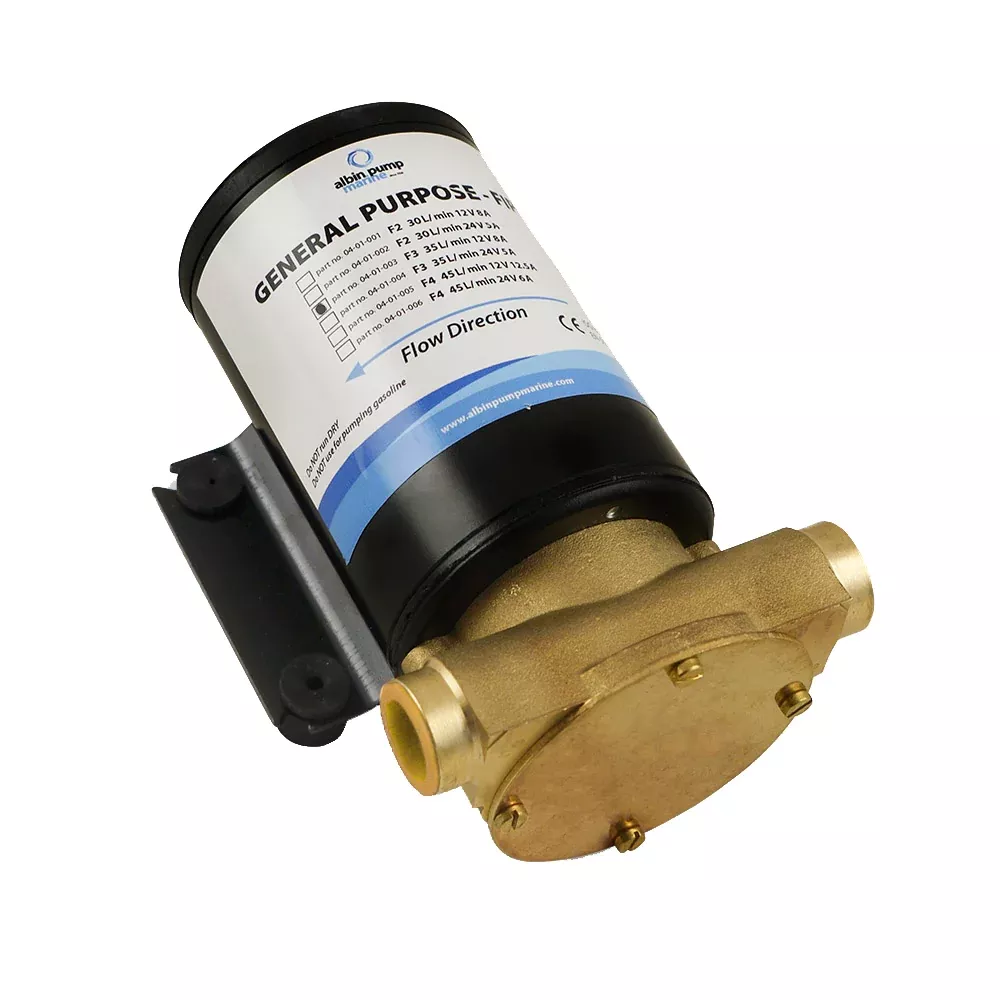

![Albin Group Marine General Purpose Pump FIP F3 (9 GPM) - 12V [04-01-003]](https://www.bestmarinewiring.com/wp-content/uploads/2026/08/albin-group-marine-general-purpose-pump-fip-f3-9-gpm-12v-04-01-003.webp)
