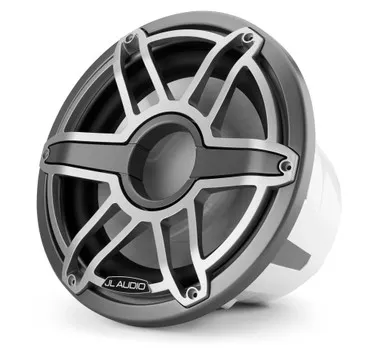

JL Audio M7 12in Subwoofer with Titanium Sport Grille

JL Audio M7 12in Subwoofer with Titanium Sport Grille

Original price was: $411.32.Current price is: $239.70.

91 in stock

SKU: JLA0100328800 Category:

Description

JL Audio M7 12in Subwoofer with Titanium Sport Grille

93673

Model: M7-12IB-S-GmTi-4

M7 12-inch Marine Subwoofer for Infinite-Baffle Use (600 W, 4 ohms) – Gray Metallic Trim Ring, Titanium Sport Grille

Engineered as the reference standard for marine subwoofer performance, the M7-12IB is capable of producing staggering amounts of jaw-dropping bass in infinite-baffle applications.

Built to withstand real-world marine duty, this M7-12IB is designed to operate without a dedicated enclosure. It boasts a monstrous 4-inch voice coil and rugged suspension system to deliver outstanding linear excursion for high output and power handling.

M7-12IB is best used with amplifier power in the 200W — 600W range and is optimized to operate with a large volume of air behind it (at least 3 cu. ft. / 84.95 l).

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

USA Limited Warranty:Two (2) years from the original date of purchase

Specifications

General Specifications
Continuous Power Handling (RMS) 600 W
Nominal Impedance (Znom) 4 ohms
Physical Specifications
Nominal Diameter 12.00 in / 300 mm
Overall Diameter 14.00 in / 356 mm
Bolt Hole Circle Diameter 12.813 in / 325 mm
Frontal Grilles Protrusion 1.48 in / 38 mm
Mounting Hole Diameter 12.0625 in / 306 mm
Mounting Depth 7.94 in / 202 mm
Driver Displacement 0.148 cu ft / 4.19 L
Net Weight 25.35 lb / 11.5 kg
Parameters
Free Air Resonance (Fs)Free Air Resonance (Fs) 35.34 Hz
Electrical “Q” (Qes) 0.856
Mechanical “Q” (Qms) 10.389
Total Speaker “Q” (Qts) 0.791
Equivalent Compliance (Vas) 1.99 cu ft / 56.35 L
One-Way Linear Excursion (Xmax)* 0.73 in / 18.5 mm
Reference Efficiency (no) 0.28%
Efficiency (1 W / 1 m)** 86.7 dB SPL
Effective Piston Area (Sd) 80.54 sq in / 0.052 sq m
DC Resistance (Re) 3.543 ohms
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
Enclosure Specifications
Infinite Baffle Use Yes (preferred)
Min. Sealed Enclosure Volume 2.0 cu ft / 56.6 L (or larger)
Optimum Sealed Enclosure Volume 3.0 cu ft / 70.8 L
