Guest On-Board Battery Charger 20A/ 12V – 2 Bank – 120V Input [2720A]

Description

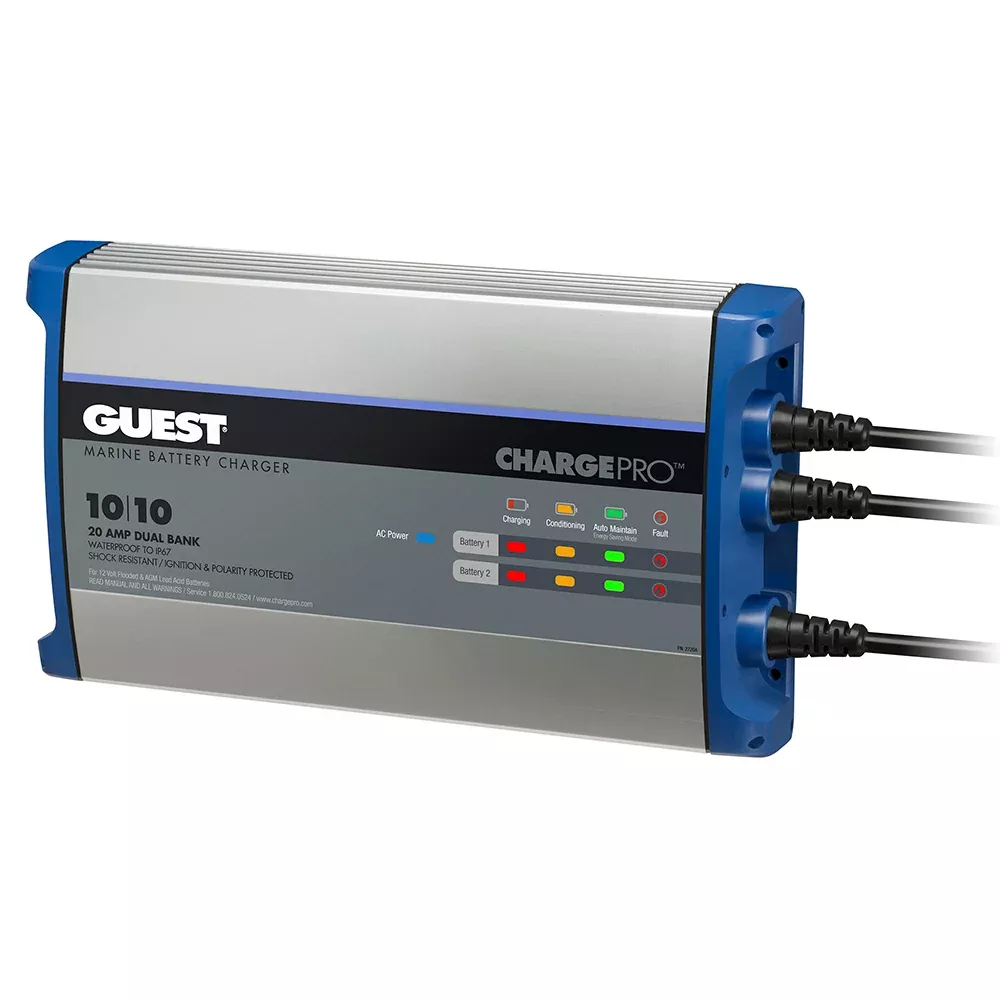

On-Board Battery Charger 20A / 12V – 2 Bank – 120V Input

Guest On-Board battery chargers have been redesigned from the inside out with the customer in mind. Our newest generation On-Board Marine battery chargers include leading advancements in digital charging technology and waterproof design/construction. Every Guest charger has a dedicated charging, sensing and control per bank. The easy to read graphics indicates the status of each battery bank through the charging process.

Features:

• All high frequency, digital charging technology
• Fully automatic 5-stage performance charging
• Dedicated battery charging, sensing and control per bank
• Expanded LED charge status monitor
• Wiring and battery fault detection
• Auto-maintain energy saver mode
• Up to 40 percent lighter
• 100 percent Waterproof (IP67) and shock resistant for all fresh and saltwater applications
• All models are pre-wired for easy installation
• For all 12 volt flooded and AGM lead acid batteries
• Built-in safety: reverse polarity, over-current, over-voltage, over-temperature and ignition protection. In-line fuses for maximum DC wire protection.
• 2 year warranty

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 12/24v
• Charger Output – Amps: 20a
• Charging Banks: 2
• Portable: No
• Charger Input – Voltage: 120v
• Box Dimensions: 7″H x 10″W x 16″L WT: 8.15 lbs
• UPC: 046904904136

Owner’s Manual (pdf)
Brochure (pdf)
