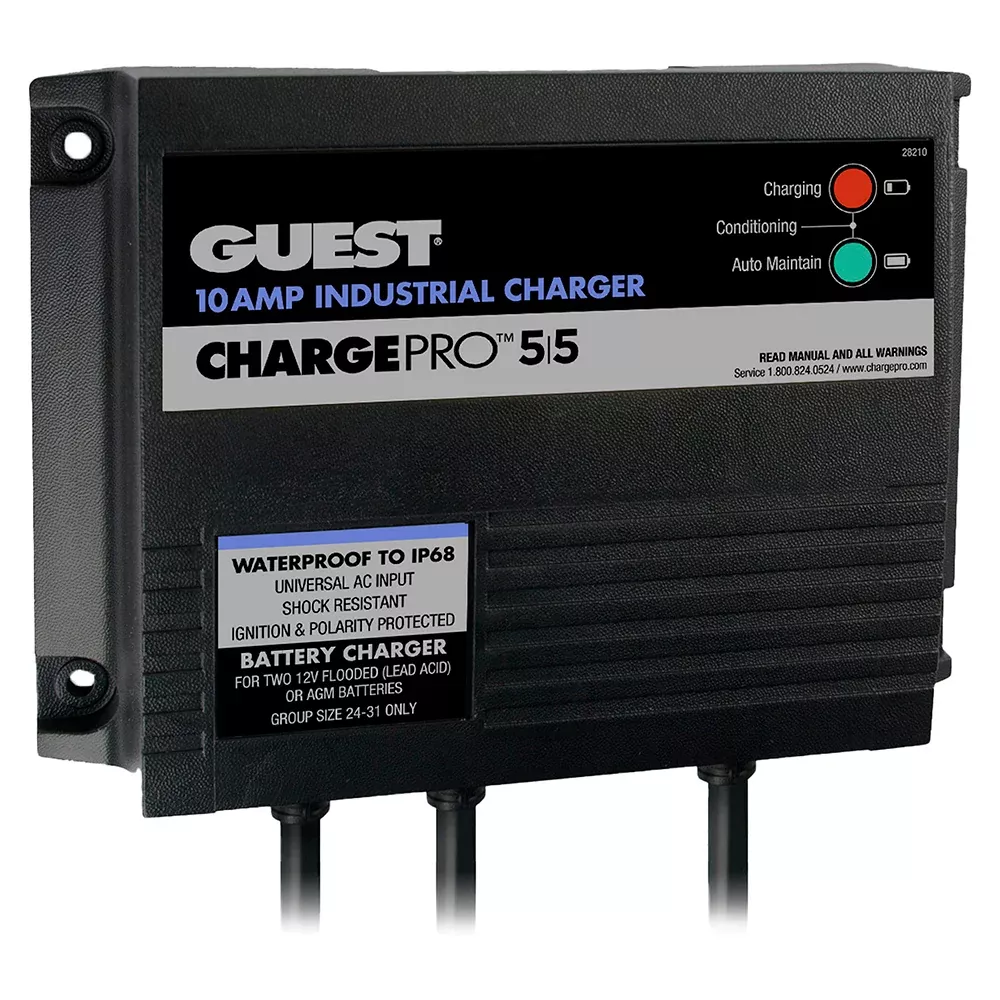

Guest 10AMP – 12/24V 2 Bank 120V Input On-Board Battery Charger

Description

10AMP – 12/24V 2 Bank 120V Input On-Board Battery Charger

These onboard chargers have the same housing and mounting dimensions as our traditional Charge Pro Guest chargers with a number of performance enhancements.

Features:

• Charge flooded, AGM or Gel batteries
• Microprocessor controlled for accurate charging
• Universal input 120/230V input for go-anywhere freedom
• Intuitive operation
• Sense-Send™ technology senses the power needs of each battery and sends correct charge
• Isolated outputs
• Outputs can be put in series or parallel for higher voltage or current
• Completely sealed, epoxy filled
• IP68 waterproof
• Designed for harsh marine and industrial environments – moisture, salt, shock and vibration tested
• Non corroding housing for ultimate reliability
• Meet global industry standards including UL*, CE, CSA, ABYC, California efficiency regulations (CEC)
• Footprint same as former Charge Pro Guest Chargers
• ConnectCharge Plug for easy assembly to inlet (Item 150CCI) with no wiring

* UL certification pending

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Charger Output Voltage: 12/24v
• Charger Output – Amps: 10a
• Charging Banks: 2
• Portable: No
• Charger Input – Voltage: 120/230v
• Box Dimensions: 3″H x 9″W x 9″L WT: 6.1 lbs
• UPC: 093344058264
