Blue Sea 7036 187 – Series Thermal Circuit Breaker – 30Amp [7036] Top Rated

Description

Product Overview

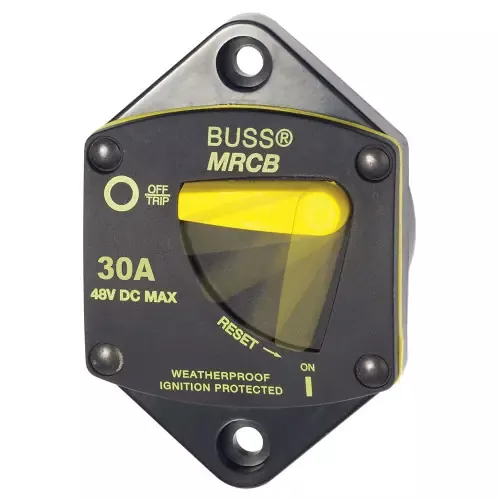

187 – Series Thermal Circuit Breakers – Panel Mount
30 Amp Circuit Breaker
PN: 7036
Features:

• Combines switching and circuit protection into a single device
• All components meet SAE J1171 external ignition protection requirements
• Clear, single lever operation
• “Trip Free” design cannot be held “ON” during fault current condition
• Waterproof
• Recessed mounting holes for clean appearance
• Self-trimming case eliminates the need for mounting panels or trim bezels
• Round case permits easy installation with standard sized hole saw
• Large clearance around terminal studs accept heavy gauge wire lugs
• Robust 5/16 terminals provide high torque connections
• Large lever with vertical/horizontal orientation provides indication of trip status
• Ignition protected – safe for installation aboard gasoline powered boats

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 30a
• Box Dimensions: 2″H x 5″W x 8″L WT: 0.45 lbs
• UPC: 632085070366
