Description

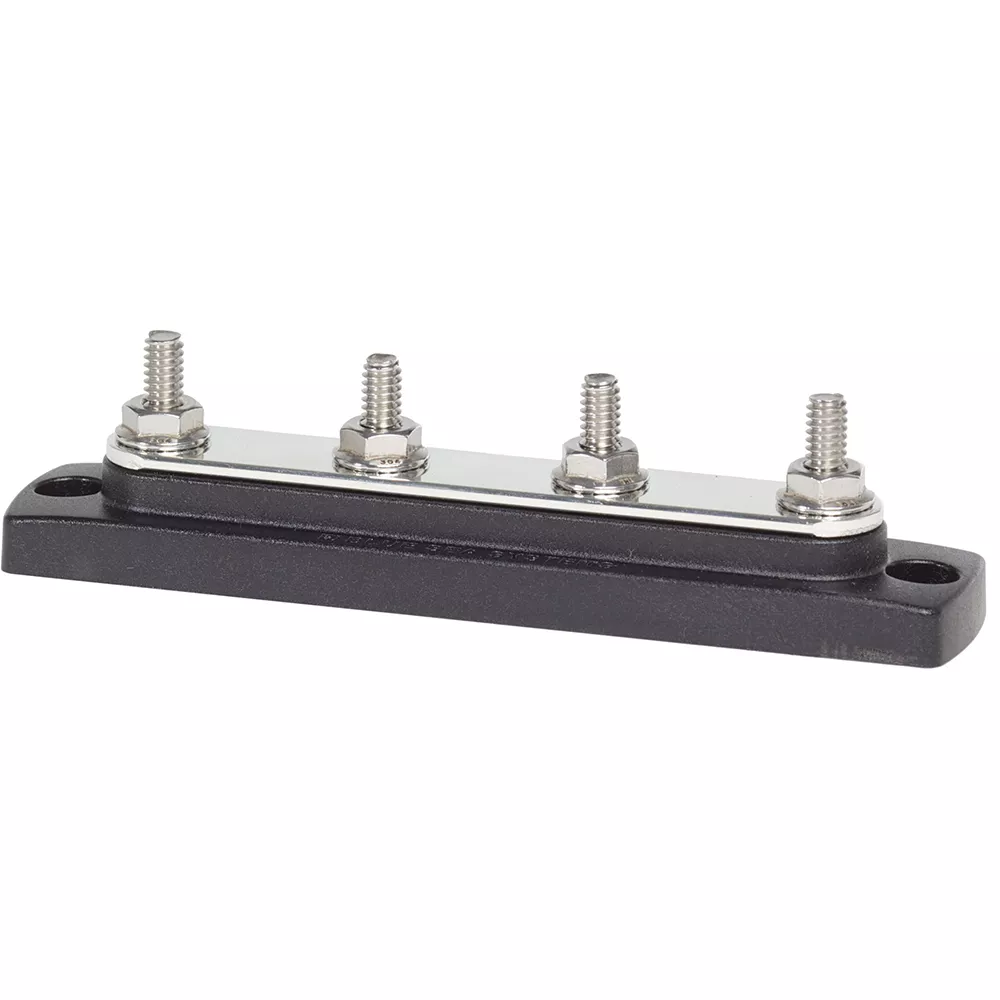

150 Ampere Common BusBars 4 x 1/4″ Stud Terminal
PN: 2303
- Stud design provides direct terminal to bus contact for low resistant connection
- Stainless steel studs allow high torquing for excellent electrical contact
- Tin-plated copper bus for maximum conductivity and resistance to corrosion
- UV 94-VO rated (self extinguishing) base material resists high heat
- Press on insulating cover attaches to studs and allows unobstructed wire access
| Continuous Amperage | 130 Amperes AC 150 Amperes DC |
| Maximum Voltage Rating | 300 Volts AC 48 Volts DC |
| Bus Material | Tin-Plated Copper CDA 110/UNS11000 |
| Base Material | Glass Reinforced Polycarbonate |
| Studs | Stainless Steel, 1/4″-20, torque 72 in-lbs, accepts 1/4″ (M6) ring terminal |
| Weight | 0.34Lb |
