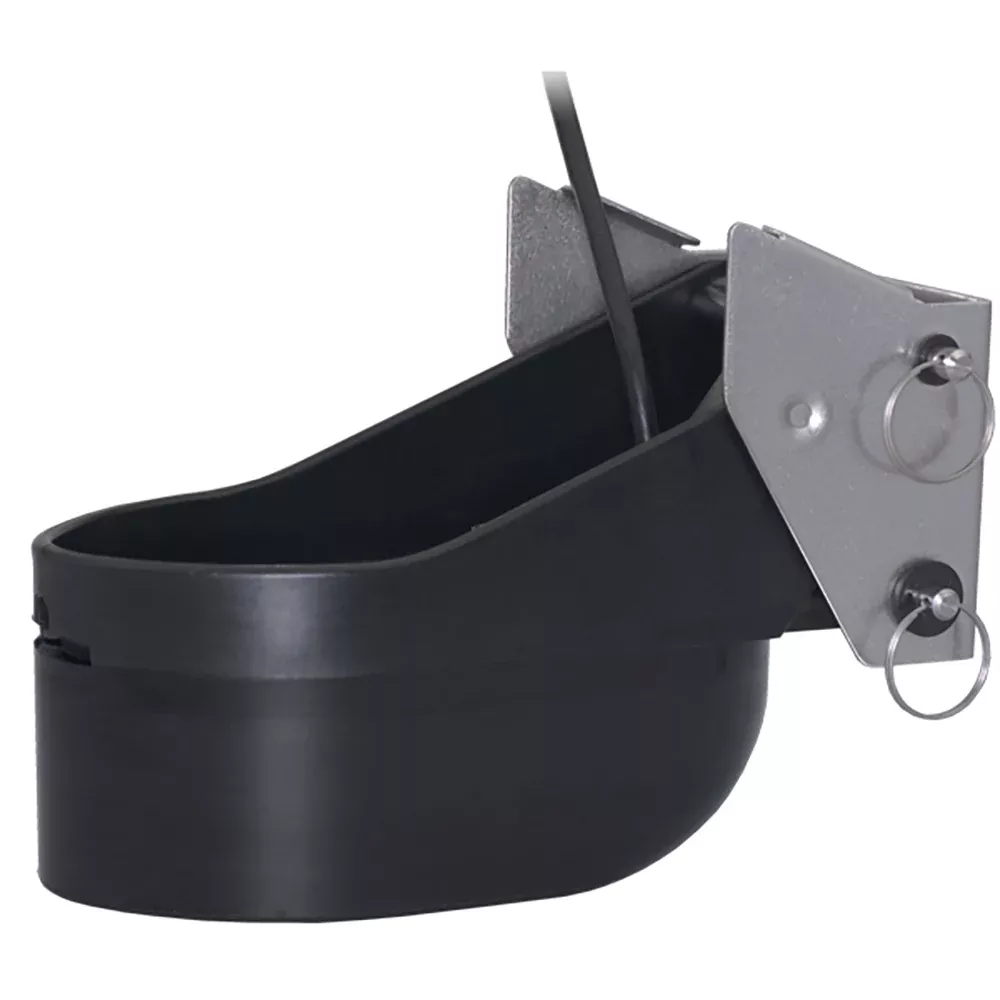

Airmar TM260 1kW Transom Mount Transducer w/Humminbird #9 Plug – 7-Pin

Description

TM260 1kW Transom Mount Transducer w/Humminbird 9 Plug – 7-Pin

Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Features:

• Top-of-the-line narrow-beam transom-mount
• Designed for bottom fishing
• Wide 19° beam at 50 kHz
• Narrow 6° beam at 200 kHz
• Interfaces to any 600W or 1 kW sounder
• Depth and fast-response water-temperature sensor
• Kick-up assembly locks in the “up” position and will not damage the transom
• Accommodates transom angles between 3° and 21°
• Urethane housing
• Boat Size: Up to 12M (40′)

Specifications:

• Weight: 4 kg (8.9 lb)
• Hull Deadrise: Up to 28°
• Acoustic Window: Urethane

This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Temperature: Yes
• Mounting Style: Transom
• Cable Length (Feet): 32′
• Pins: 7
• Box Dimensions: 8″H x 10″W x 11″L WT: 9.35 lbs

Quick Guide (pdf)
Owner’s Manual (pdf)
Brochure (pdf)
